| GPU Specification | |
| Multi Display Capability | 3 |
| Motherboard Specification | |
| Chipset | Intel H610 Chipset |
| Form Factor | mATX Form Factor 9.29 x 7.95 in. (23.6 cm x 20.2 cm) |
| Audio | Realtek ALC892/ ALC897 Codec 7.1-Channel High Definition Audio |
| Socket | 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Max Number of Channels | Dual |
| Memory Capacity | 96 |
| Memory Slots | 2 |
| Supports | |
| Supported CPU | Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 |
| Supported Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Supported Storage | 4x SATA 6Gb/s ports 1x M.2 slot (Key M, from chipset) Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Smart Response Technology for Intel Core processors |
| Connectors | |
| LAN | 1x Intel I219V 1Gbps LAN controller |
| USB | Intel H610 Chipset: 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector) 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector) |
| HDMI | 1 |
| TPM (Trusted Platform Module ) | 1x TPM module connector |
| VGA | 1 |
| Ports & Slots | |
| Slots | M.2 SLOT 1 |
| Ports | USB 3.2 Ports (Front) 2(Gen 1, Type A) USB 3.2 Ports (Rear) 2(Gen 1, Type A) USB 2.0 Ports (Front) 2 USB 2.0 Ports (Rear) 4 Audio Ports (REAR) Realtek ALC892/ ALC897 Codec |
| Internal I/O Ports | POWER CONNECTORS: 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector FAN CONNECTORS: 1x 4-pin CPU fan connector 1x 4-pin system fan connector SYSTEM CONNECTORS: 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector |
| Expansion Slots | PCI 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16 1x PCIe x1 slot Supports PCIe 3.0 x1 1x M.2 slot with E-key for PCIe WiFi module only (M2_ WIFI1) |
| Physical Specification | |
| Dimensions (W x D x H) | 304*243mm |
| Warranty Information | |
| Warranty | 03 year |

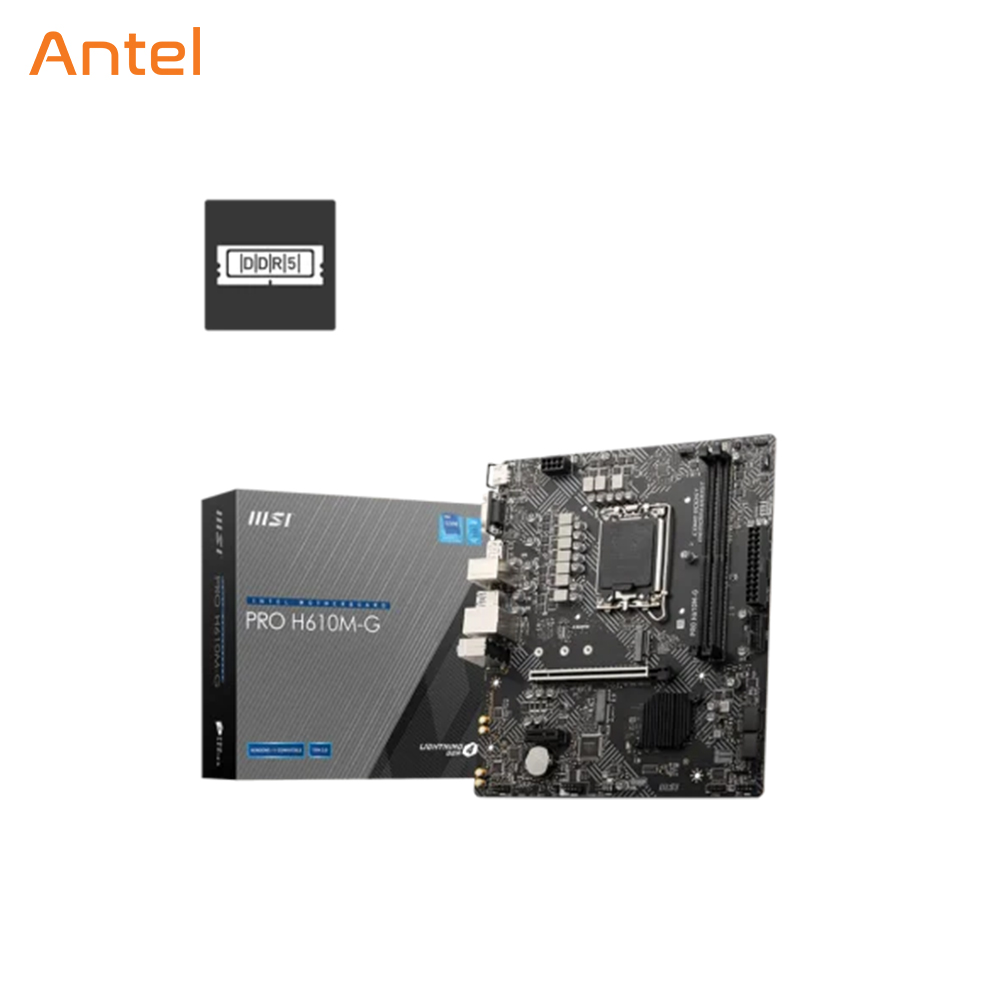

MSI PRO H610M-G DDR5 MOTHERBOARD
Start your small form factor build with a strong foundation using the MSI PRO H610M-G LGA 1700 M-ATX Motherboard. This Micro-ATX motherboard is powered by the Intel H610 chipset and utilizes the LGA 1700 socket that can house 12th, 13th, and 14th-generation Intel CPUs. Two 288-DIMM memory slots support dual-channel DDR5 RAM up to 96 GB in capacity and 5600 MHz speed when overclocked.
Rear Panel I/O
For external displays, use the HDMI 2.1, DisplayPort 1.4, or VGA port. A compatible keyboard and mouse combo can be connected using the PS/2 port. Other peripherals and non-PS/2 keyboards and mice can utilize the four USB 2.0 or two USB 3.2 Gen 1 ports. Three 3.5mm audio jacks support headsets and speakers that use the Realtek ALC897 codec for 7.1-channel audio. The Gigabit Ethernet port allows for a wired LAN connection.
Storage Compatibility
A single M.2 PCIe 3.0 x4 slot supports 2280, 2260, and 2242 devices for storage. Six SATA III headers allow you to expand your storage space as well.
PCIe Slots
A single PCIe 4.0 x16 slot is perfect for graphics cards and a PCIe 3.0 x1 slot can be used for expansion cards, network cards, or sound cards.
MSI Center
Access several quality-of-life options using the MSI Center software.
Detect CPU and GPU temperatures then automatically adjust system fans using MSI AI ENGINE.
Optimize your monitor’s brightness and color using True Color.
Live Update automatically keeps your drivers, BIOS, and software up to date.
Choose from premade settings with User Scenario.
M.2 E-Key Slot
The reserved M.2 E-key slot allows you to add a Wi-Fi module to the motherboard for a wireless connection.
