| Motherboard Specification | |
| Chipset | INTEL B760 |
| Form Factor | mATX |
| Audio | Realtek® ALC897 Codec 7.1-Channel High-Performance Audio Supports S/PDIF output |
| Socket | LGA1700 |
| Memory Specification | |
| Memory Type | 4x DDR5 |
| Memory Capacity | Maximum Memory Capacity 192GB |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Supported Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | 1x HDMI Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* |
| Display Port | 1x DisplayPort Support DP 1.4, a maximum resolution of 4K 60Hz* |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports |
| PCI-E | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| Physical Specification | |
| Dimensions (W x D x H) | 243.84mmx243.84mm |
| Warranty Information | |
| Warranty | 3 years |
Description

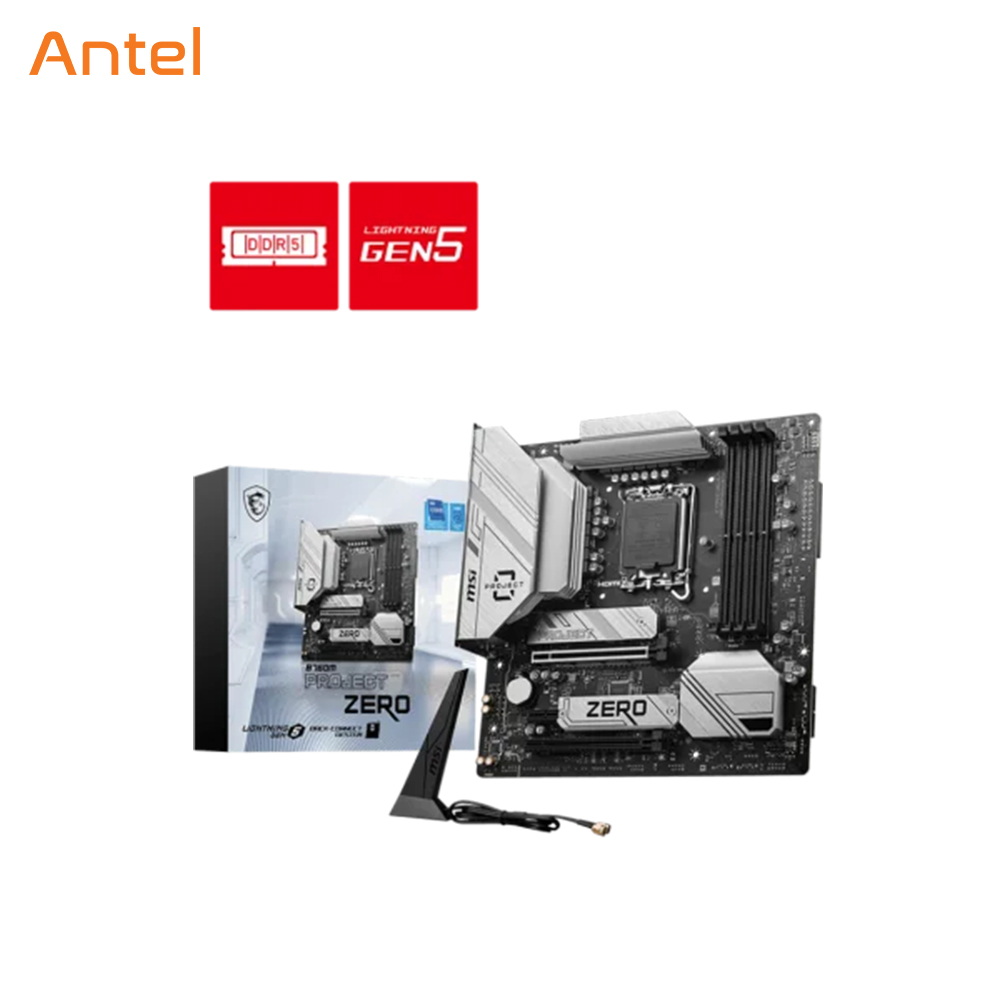

MSI B760M PROJECT ZERO m-ATX Motherboard
The MSI B760M PROJECT ZERO m-ATX Motherboard is a powerhouse built to improve your computing experience. This motherboard is designed to handle a broad range of processors, including Intel Core 14th, 13th, and 12th Generation CPUs, as well as Intel Pentium Gold and Celeron processors, all of which fit perfectly into the LGA 1700 socket. The B760M PROJECT ZERO is equipped with cutting-edge technology and supports DDR5 Memory, which can achieve speeds of up to 7800+(OC) MHz. Its Enhanced Power Design has a 12+1+1 Duet Rail Power System, two 8-pin CPU power connections, Core Boost, and Memory Boost to provide peak performance for demanding jobs and applications. Immerse yourself in a lightning-fast gaming experience thanks to features such as the PCIe 5.0 slot, Lightning Gen 4 x4 M.2, and USB 3.2 Gen 2×2. The Premium Thermal Solution, which includes the Extended Heatsink Design and M.2 Shield Frozr, is designed for high-performance systems, allowing for continuous, efficient workloads without compromising temperature management. Audio fans will like the Audio Boost function, which provides a studio-grade sound experience while improving the overall audio quality of your system. The motherboard also has a high-quality PCB with a 6-layer design made of 2oz thicker copper and server-grade components, assuring longevity and dependability over time. The MSI B760M PROJECT ZERO m-ATX Motherboard offers a seamless balance of performance, power efficiency, and dependability, making it an excellent choice for gamers, content creators, and professionals alike.
