| Motherboard Specification | |
| Chipset | Intel B760 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 192GB |
| Network & Wireless | |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMI 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot |
| Warranty Information | |
| Warranty | 3 Year |

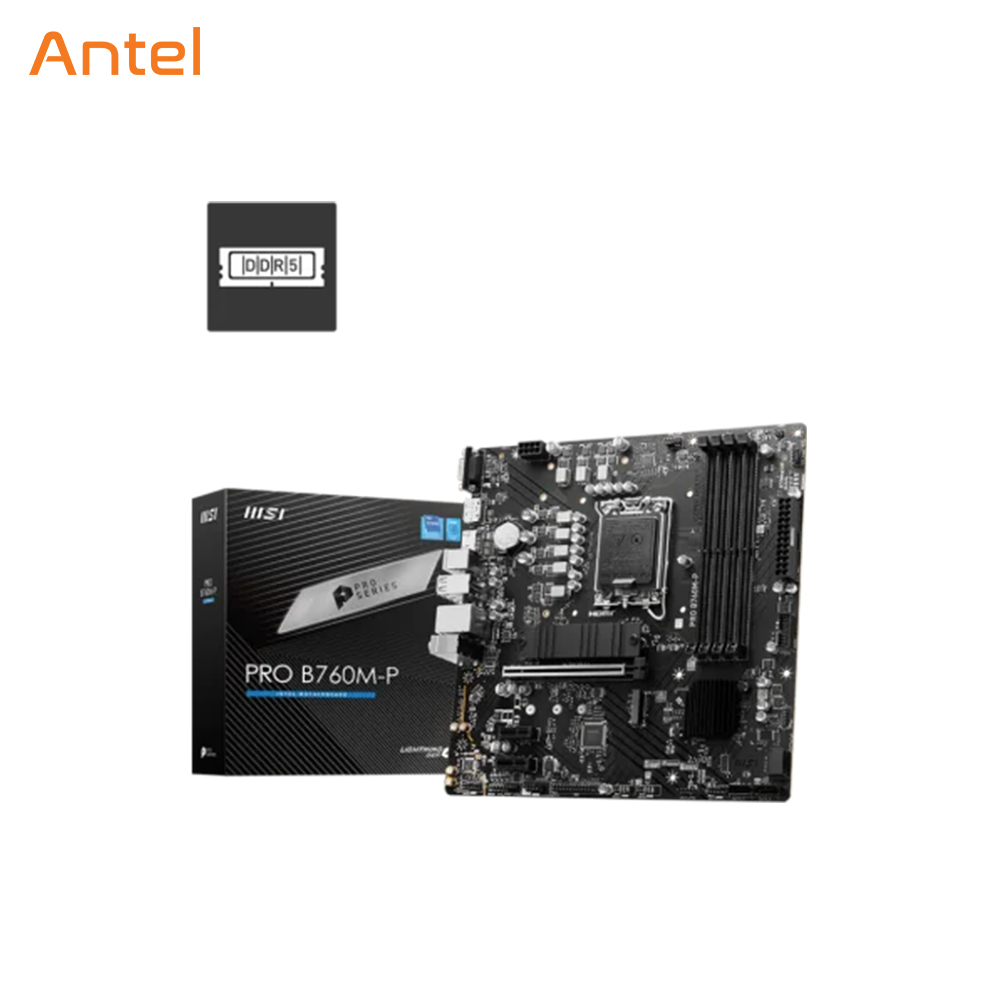

MSI PRO B760M-P DDR5 ATX Motherboard
MSI PRO B760M-P Intel Motherboard is a powerful and versatile motherboard designed to meet the needs of gamers and PC enthusiasts. This motherboard boasts a range of flexible tools that allow users to customize their systems to meet their specific needs. With impressive performance and high-quality components, the MSI PRO B760M-P Intel Motherboard is a reliable choice for anyone looking for a high-performance motherboard.
One of the most notable features of the MSI PRO B760M-P Intel Motherboard is its ability to deliver incredible performance. With support for Intel’s latest processors, this motherboard is capable of handling even the most demanding applications with ease. Whether you’re a hardcore gamer or a video editor, this motherboard will give you the power you need to get the job done.
