Specification
| Motherboard Specification | |
| Chipset | INTEL B760 |
| Form Factor | ATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF outpu |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 192GB |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: 1DPC 1R Max speed up to 7000+ MHz 1DPC 2R Max speed up to 6600+ MHz 2DPC 1R Max speed up to 6400+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot |
| Warranty Information | |
| Warranty | 3 Years |

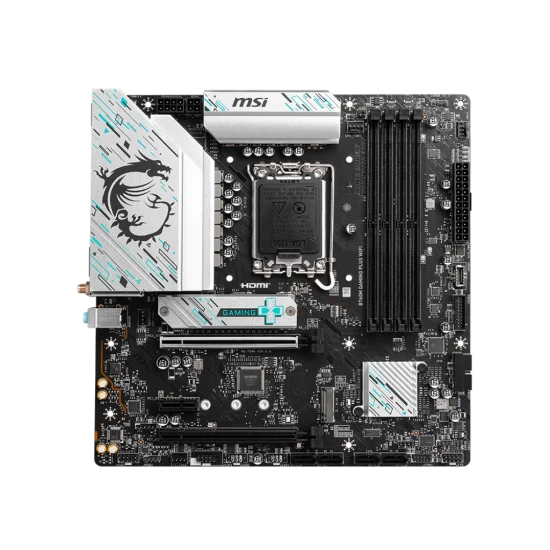

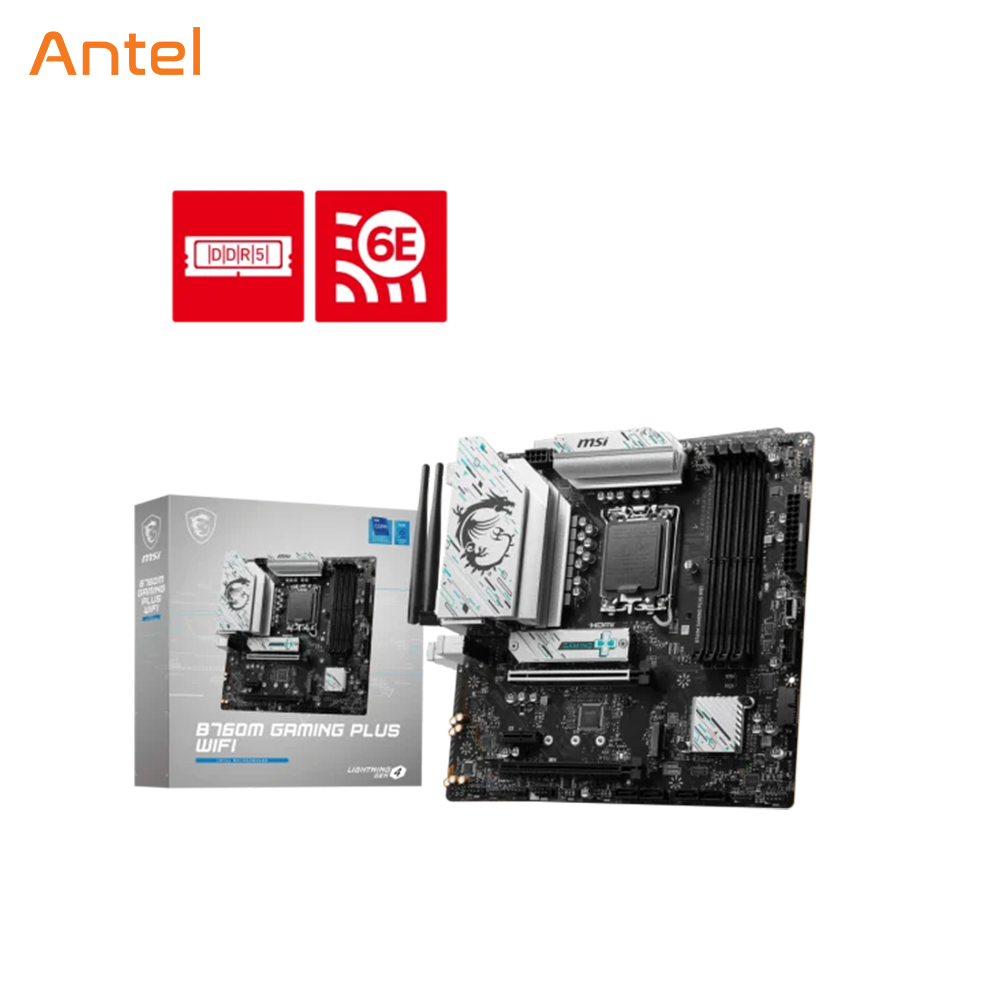

B760 GAMING PLUS WIFI
Defeat the Competition
The B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, a convenient Wi-Fi solution and DDR5 memory support for gamers who want it all.
- Supports Intel Core 12th & 13th Gen Processors (LGA 1700)
- 12 Duet Rail Power System with P-PAK
- 4 x DDR5 DIMMs with Memory Boost: Dual Channel (128GB Max. / 6800MHz OC)
- 2 x PCI-e 4.0 x16 slots
- Lightning Gen4 M.2 & M.2 Shield Frozr
- USB 3.2 Gen 2 Type-C (10Gbps)
- 7.1 HD Audio with Audio Boost
- Realtek 2.5G LAN, Intel Wi-Fi 6E & Bluetooth 5.3
