| Motherboard Specification | |
| Chipset | Intel B760 |
| Form Factor | mATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR4 |
| Memory Capacity | 128GB |
| Network & Wireless | |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: 1DPC 1R Max speed up to 5333+ MHz 1DPC 2R Max speed up to 4800+ MHz 2DPC 1R Max speed up to 4400+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot |
| Warranty Information | |
| Warranty | 3 Year |

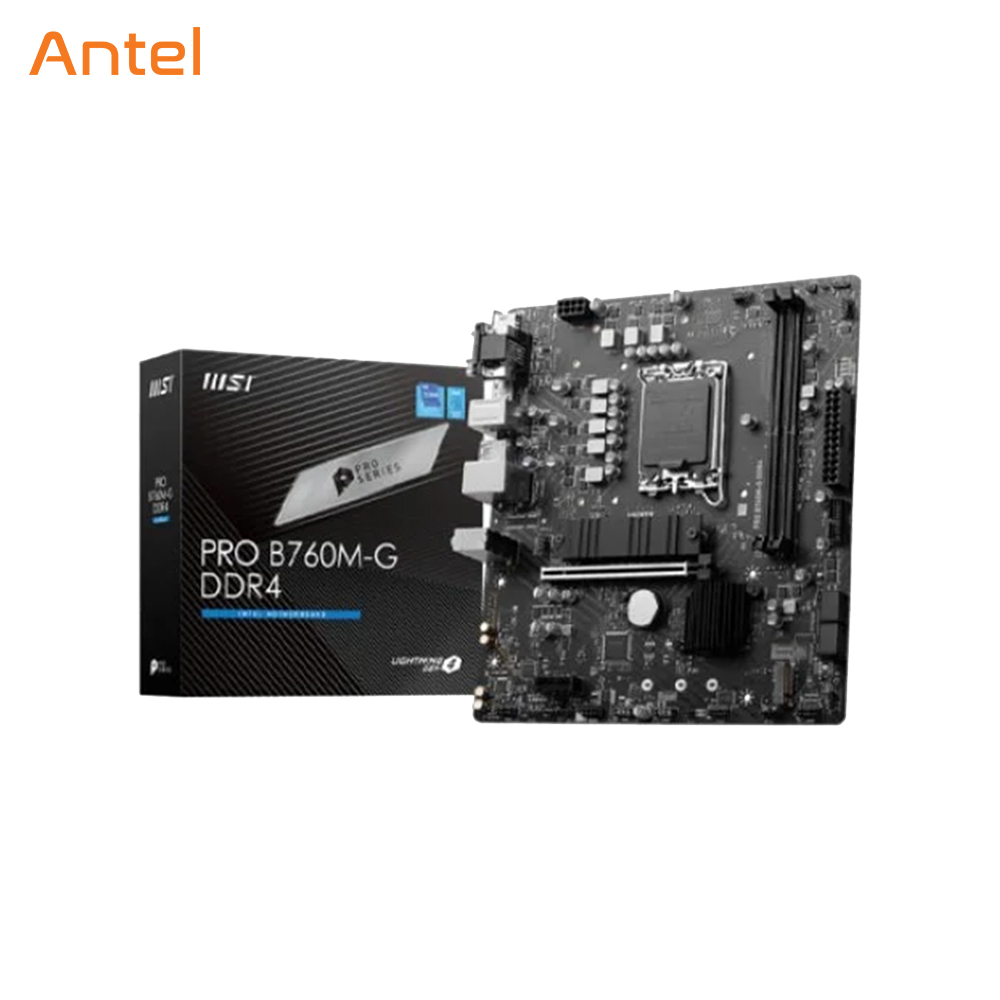

MSI PRO B760M-G DDR4 mATX Motherboard
The MSI PRO B760M-G DDR4 MATX Motherboard is a high-performance motherboard designed for compact systems. It features the Intel B760 chipset and supports the latest 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors. With its mATX form factor and dimensions of 243.84mmx304.8mm, it is suitable for smaller cases without compromising on functionality.
One of the standout features of this motherboard is its memory capacity. It supports up to 128GB of DDR4 memory, allowing for smooth multitasking and efficient data processing. The motherboard also supports a wide range of memory frequencies, including overclocked speeds up to 5333+ MHz. It features dual-channel mode support and compatibility with Intel Extreme Memory Profile for optimized memory performance.
In terms of connectivity, the MSI PRO B760M-G motherboard offers a variety of options. It includes Realtek 2.5Gbps LAN for fast and stable network connections. The motherboard also provides multiple USB ports, including USB 2.0 and USB 3.2 Gen1 Type A ports on both the rear and front panels. It features USB 3.2 Gen2 Type A and Type C ports for high-speed data transfer. Additionally, the motherboard supports HDMI 2.1 with HDR and DisplayPort 1.4, allowing for high-resolution display output with maximum resolutions of 4K at 60Hz and 8K at 60Hz, respectively.
The MSI PRO B760M-G motherboard also offers a range of expansion slots, including two PCI-E x16 slots and one PCI-E x1 slot. These slots support various configurations, providing flexibility for adding graphics cards, storage devices, and other expansion cards.
The motherboard includes multiple internal I/O ports for seamless connectivity, such as CPU and system fan connectors, front panel connectors, RGB LED connectors, and USB headers. It also features a TPM pin header for enhanced security.
With a three-year warranty, the MSI PRO B760M-G DDR4 MATX Motherboard offers reliability and peace of mind. Its compact size, powerful performance, versatile connectivity options, and expandability make it an excellent choice for building a high-performance system in a smaller form factor.
MSI PRO B760M-G DDR4 Motherboard Features:
Important features of the MSI PRO B760M-G DDR4 MATX Motherboard-
- Intel B760 chipset
- LGA 1700 socket
- Maximum memory capacity of 128GB
- Realtek ALC897 Codec for 7.1-channel USB audio
- Supports 12th/13th Gen Intel Core Processors
- Dual-channel memory support
- USB 2.0 and USB 3.2 Gen2 ports
- HDMI and DisplayPort outputs
- PCI-E x16 and x1 slots
- Three-year warranty.
Some additional features of the MSI PRO B760M-G DDR4 MATX Motherboard-
- Support for overclocking memory frequencies
- Intel Extreme Memory Profile support
- Multiple fan connectors for efficient cooling
- Addressable V2 RGB LED connectors
- Tuning Controller connector
- Chassis intrusion and front audio connectors
- TPM pin header for enhanced security
- Support for high-resolution display output
- PCIe 5.0, PCIe 4.0, and PCIe 3.0 compatibility
- Front and rear USB 3.2 Gen2 Type C ports.
