| Motherboard Specification | |
| Chipset | INTEL Z790 |
| Form Factor | E-ATX |
| Audio | Realtek® ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on the front panel |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | 4x DDR5 UDIMM |
| Memory Capacity | Maximum Memory Capacity 192GB |
| Network & Wireless | |
| Wi-Fi | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
| LAN | Marvell® AQC113CS-B1-C 10Gbps LAN Intel® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| Supported Memory | Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7800+ MHz • 1DPC 2R Max speed up to 6800+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 6000+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Connectors | |

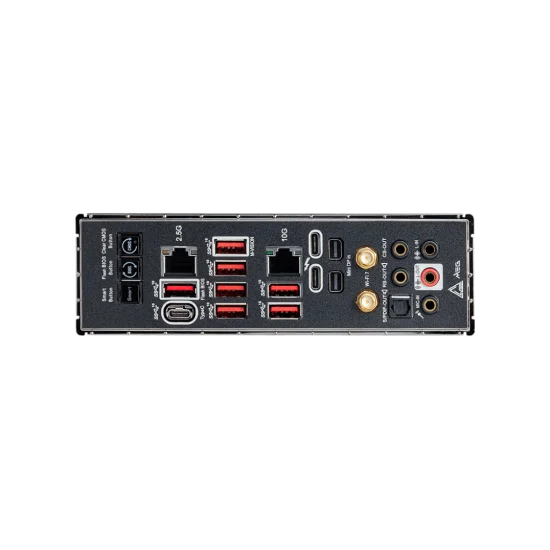

| USB | 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Front) 7x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 2x USB 3.2 Gen2x2 Type C (Front) |
| Display Port | Thunderbolt chip JHL8540 2x Thunderbolt4 (USB-C) ports Q’ty Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel) |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Front Type-C Quick Charge Connector(PD_PWR1) 1x CPU Fan 2x Pump Fan 7x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Water Flow connector 1x Slow Mode Booting Jumper(JSLOW) 1x Front Audio (JAUD) 2x Thermal Sensor connectors(T_SEN) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 2x USB 3.2 Gen 2×2 Type C ports V-check point 1x ARGB+FAN Header (JAF_1) |
| PCI-E | PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) |
| Warranty Information | |
| Warranty | 3 Years |

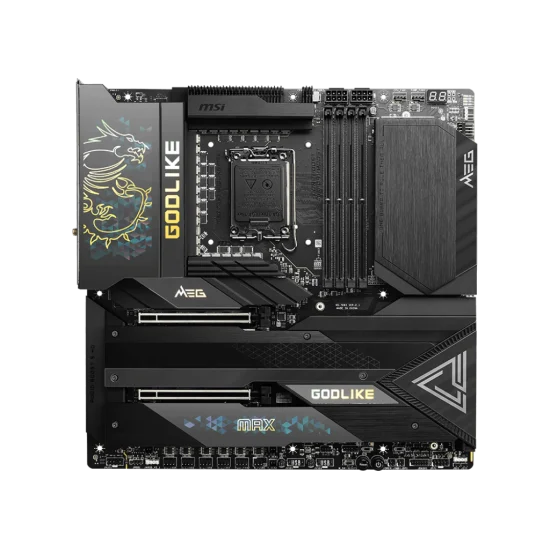

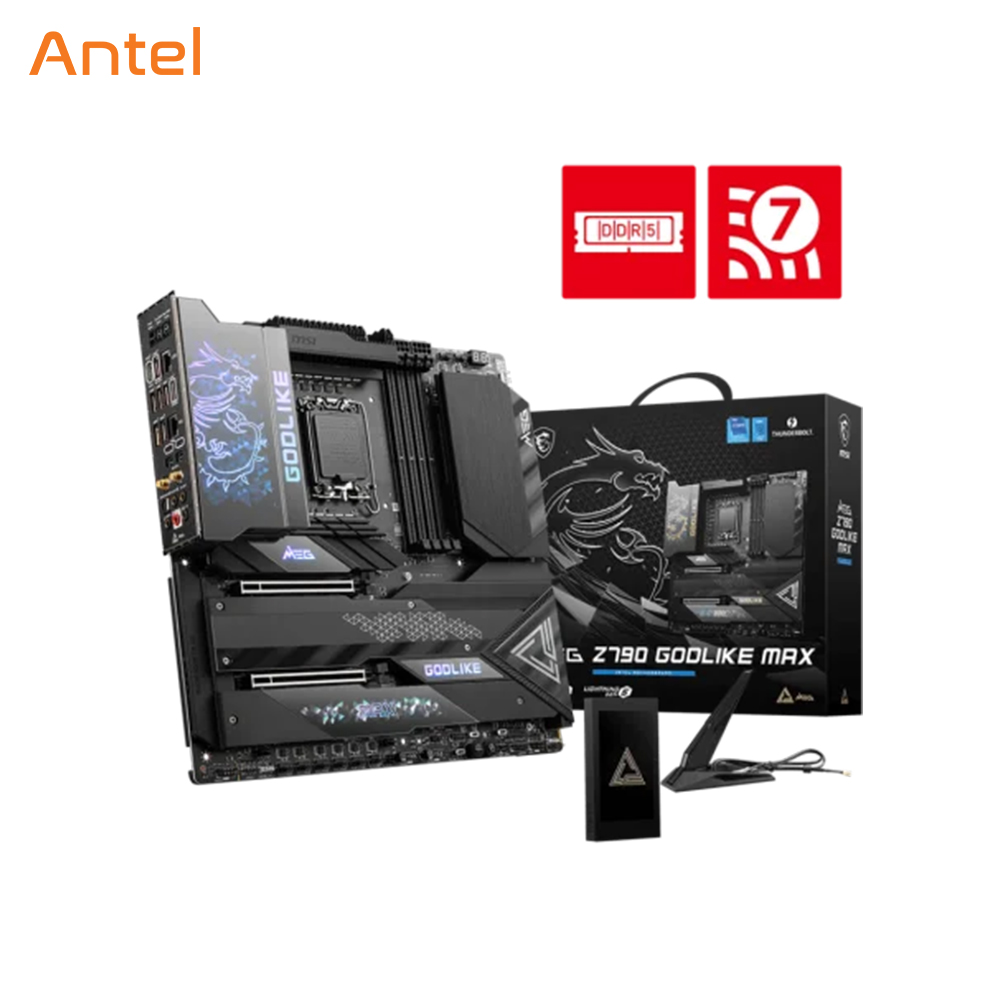

MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard. This motherboard is a high-performance model that supports the latest Intel 14th/13th/12th Gen processors and up to 192GB of DDR5 memory. It features a range of high-quality audio and networking components, including a Realtek ALC4082 Codec and an ESS ES9280AQ Combo DAC/HPA. The motherboard also supports up to 32 Bit/384 kHz playback on the front panel and has a range of USB ports, including USB 3.2 Gen2 Type-C ports. The MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard also features a range of connectors and slots, including DisplayPort, USB-C, and Thunderbolt 4 ports. It has a range of internal I/O ports, including power connectors, front panel connectors, and fan connectors. The motherboard also has a range of LED lights and a TPM pin header for security. It is a powerful and versatile motherboard that can support the latest hardware and software, and it is a great choice for anyone looking to build a high-performance PC.
MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard
- Fast processing: The motherboard supports the latest Intel processors for fast and efficient processing.
- High-quality audio: The motherboard features high-quality audio components for clear and detailed sound.
- Convenient connectivity: The motherboard has a range of USB ports and Thunderbolt 4 ports for convenient connectivity.
- Display output: The motherboard has a DisplayPort for high-quality display output.
- Customizable LED lights: The motherboard has a range of LED lights for a stylish and customizable look.
- Security: The motherboard has a TPM pin header for security.
- Expandability: The motherboard has a range of expansion slots for future upgrades.
- Compatibility: The motherboard is compatible with a range of operating systems. These are just a few of the short features of the MSI MEG Z790 GODLIKE MAX DDR5 E-ATX Motherboard.
