| Motherboard Specification | |
| Chipset | Intel B760 |
| Form Factor | mATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 192GB |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| PCI-E | 1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) |
| Warranty Information | |
| Warranty | 3 Year |

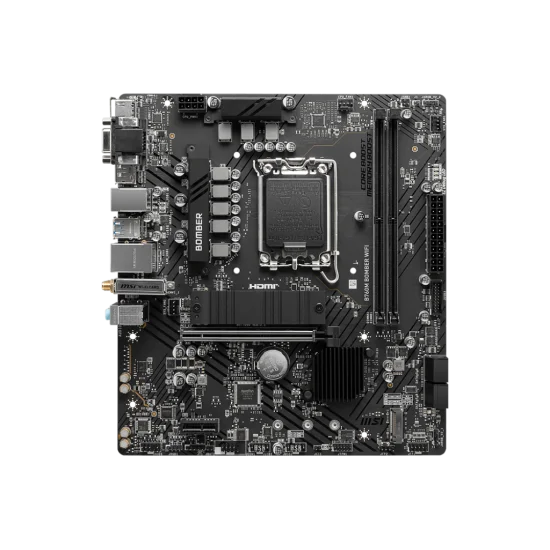

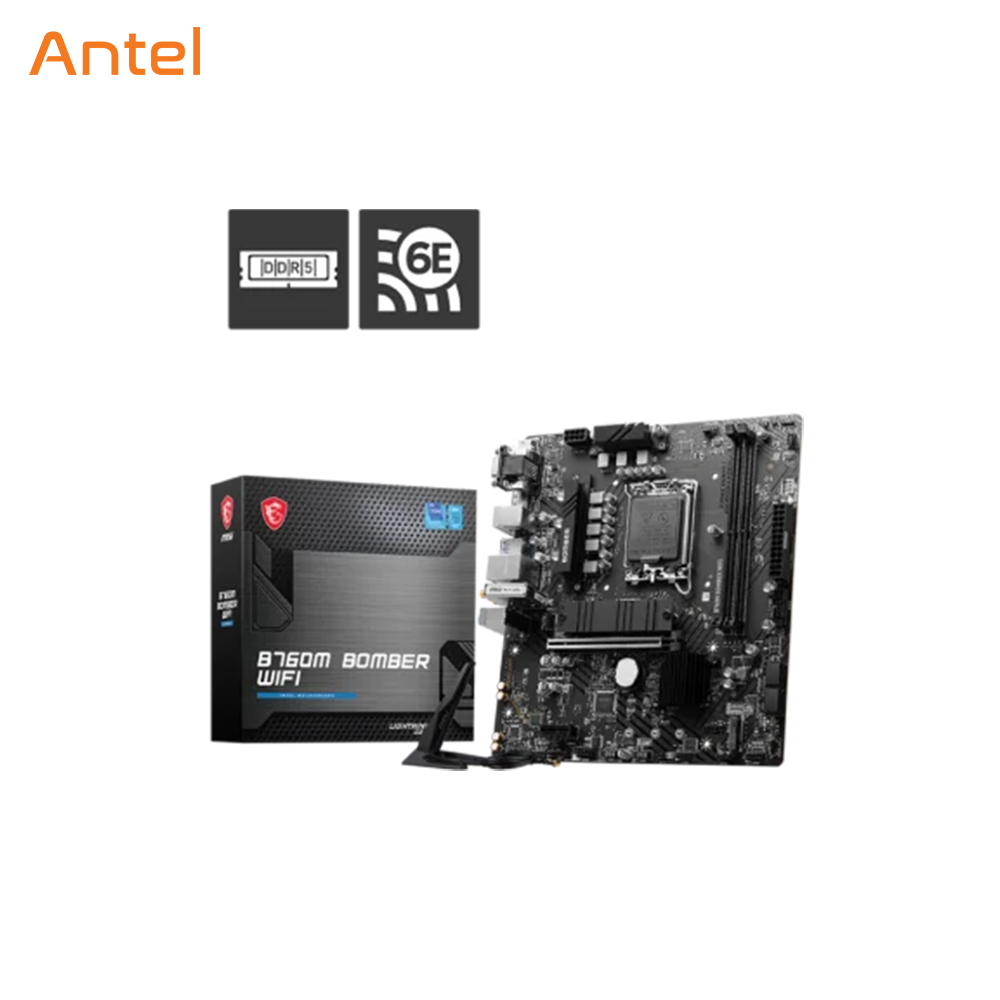

MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD
The MSI MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD is a high-performance motherboard designed for gaming and other demanding applications. It features the Intel B760 chipset and supports 12th/13th Gen Intel Core processors, Pentium Gold, and Celeron processors, making it compatible with a wide range of CPUs. The motherboard has an mATX form factor, measuring 243.84mmx304.8mm, making it suitable for smaller PC builds.
One of the notable features of this motherboard is its support for DDR5 memory. It has four DDR5 memory slots with a maximum capacity of 192GB. The memory supports overclocking with speeds up to 7000+ MHz (OC), delivering excellent performance for memory-intensive tasks.
In terms of network connectivity, the motherboard is equipped with Intel Wi-Fi 6E, offering fast and reliable wireless connectivity. It also has a Realtek 2.5Gbps LAN port for high-speed wired internet connections.
The MSI MAG B760M MORTAR WIFI motherboard offers multiple connectivity options with a range of USB ports. It includes USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2 Type A and Type C ports, allowing for easy connection of various devices.
The motherboard supports high-quality audio with the Realtek ALC897 Codec, providing 7.1-channel USB high-performance audio and S/PDIF output. It also features HDMI 2.1 and DisplayPort 1.4, enabling support for 4K and 8K resolutions, respectively.
With regards to expansion slots, the motherboard has two PCI-E x16 slots, supporting x16/x4 configurations, and one PCI-E x1 slot. It also includes several internal I/O ports for connecting various components.
Overall, the MSI MAG B760M MORTAR WIFI DDR5 MATX Motherboard is a feature-rich motherboard that combines excellent performance, versatile connectivity options, and efficient memory support, making it a suitable choice for gaming enthusiasts and professionals seeking a reliable and powerful foundation for their PC builds.
MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD Features:
Here are some Important features of MSI B760M BOMBER WIFI DDR5 MATX MOTHERBOARD-
- Intel B760 chipset
- mATX form factor
- DDR5 memory support
- Wi-Fi 6E connectivity
- Realtek 2.5Gbps LAN
- Supports 12th/13th Gen Intel Core processors
- Maximum memory capacity of 192GB
- Multiple USB ports, including USB 3.2 Gen2 Type A and Type C
- HDMI 2.1 with HDR support
- DisplayPort 1.4 with support for 8K resolution
Some Additional features of MSI MAG B760M MORTAR WIFI DDR5 mATX Motherboard-
- Realtek ALC897 Codec for high-quality audio
- Supports overclocking for memory
- Dual-channel memory support
- Supports non-ECC, un-buffered memory
- Intel Extreme Memory Profile support
- Multiple internal I/O ports for component connectivity
- PCIe 5.0 support for the primary x16 slot
- PCIe 4.0 support for one slot
- TPM pin header for TPM 2.0 support
- Three-year warranty
