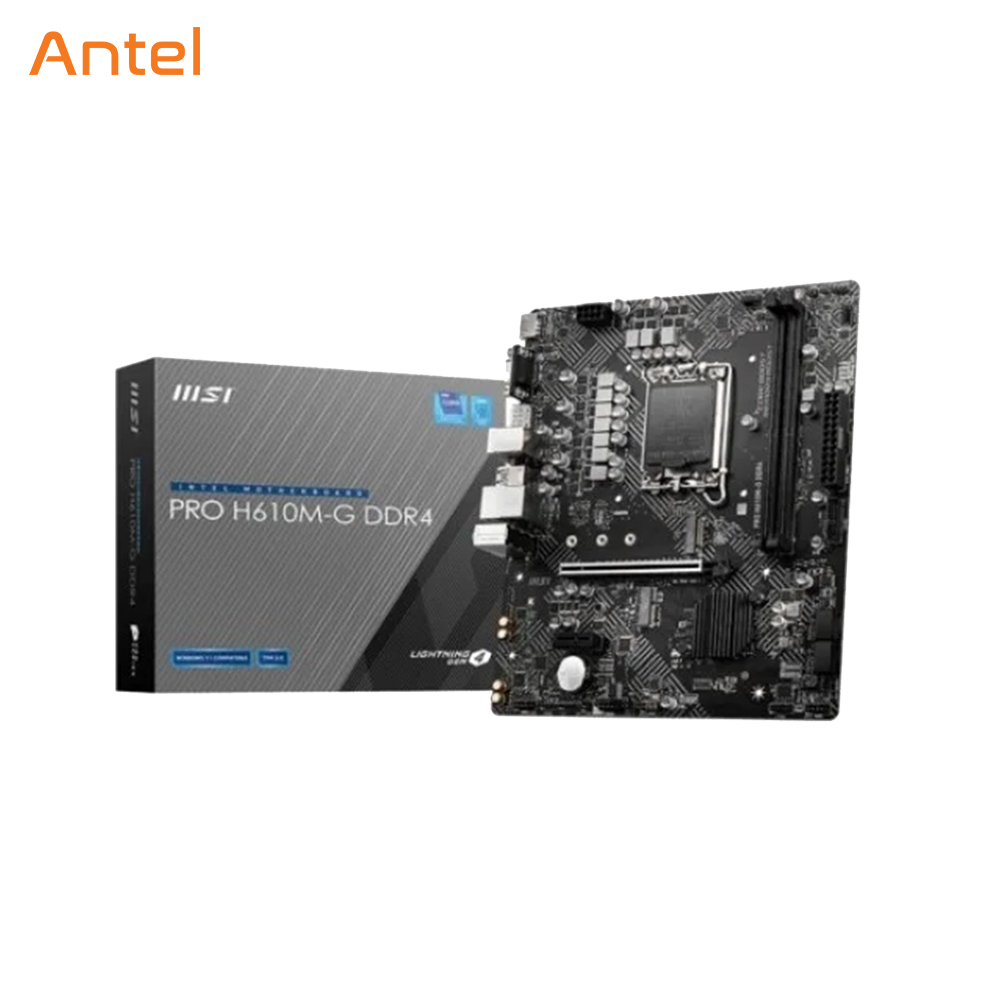

MSI PRO H610M-G DDR4 MOTHERBOARD

MSI PRO H610M-G DDR4 MOTHERBOARD

The MSI PRO H610M-G DDR4 motherboard is a feature-rich and reliable motherboard designed for professional and home use. It utilizes the Intel H610 chipset and supports 12th Gen Intel Core processors, Pentium Gold, and Celeron processors. The motherboard comes in the mATX form factor, measuring 9.29 x 7.95 inches (23.6 cm x 20.2 cm), making it suitable for a wide range of computer cases.

In terms of memory, the MSI PRO H610M-G DDR4 motherboard supports DDR4 memory type with a maximum capacity of 64GB. It has two memory slots and supports dual-channel mode, offering improved performance for memory-intensive tasks. The motherboard also supports non-ECC, un-buffered memory, providing stability and reliability for your system.

For storage options, the motherboard offers four SATA 6Gb/s ports and one M.2 slot with support for PCIe 3.0 x4 and SATA 6Gb/s. The M.2 slot supports 2242/2260/2280 storage devices, allowing you to take advantage of high-speed NVMe SSDs for faster data transfer and improved system responsiveness. Additionally, it supports Intel Smart Response Technology for Intel Core processors, enhancing overall storage performance.

Connectivity-wise, the MSI PRO H610M-G DDR4 motherboard features an Intel I219V 1Gbps LAN controller for reliable and fast Ethernet connectivity. It also includes multiple USB ports, including four USB 3.2 Gen 1 5Gbps ports, six USB 2.0 ports, and internal USB connectors for additional USB connectivity options. The motherboard also has an HDMI and VGA port for multi-display capabilities.

In terms of audio, the motherboard utilizes the Realtek ALC892/ALC897 Codec, providing high-definition 7.1-channel audio output for an immersive audio experience during gaming, multimedia playback, or content creation.

Overall, the MSI PRO H610M-G DDR4 motherboard combines a robust chipset, versatile connectivity options, expandable storage capabilities, and high-quality audio to deliver a reliable and feature-packed solution for both professional and home users.

MSI PRO H610M-G DDR4 MOTHERBOARD Features:

Here are some important Features of MSI PRO H610M-G DDR4 MOTHERBOARD-

• Micro ATX form factor
• Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
• Dual-channel DDR4 memory support with a maximum capacity of 64GB
• Realtek ALC892/ALC897 Codec for 7.1 channel high definition audio
• PCIe x16 slot that supports up to PCIe 4.0 x16 and a PCIe x1 slot that supports PCIe 3.0 x1
• M.2 slot (Key M) for storage devices that supports up to PCIe 3.0 x4 and SATA 6Gb/s
• Four SATA 6Gb/s ports and one TPM module connector
• Intel I219V 1Gbps LAN controller
• Four USB 3.2 Gen 1 5Gbps ports and six USB 2.0 ports
• VGA and HDMI output connectors

Some additional Features of MSI PRO H610M-G DDR4 MOTHERBOARD-

• Supports non-ECC, un-buffered memory
• Supports up to 3200 MHz (by JEDEC & POR)
• Supports Intel Smart Response Technology for Intel Core processors
• One front panel audio connector and two system panel connectors
• Chassis Intrusion connector
• Expansion Slot – PCI
• Dimensions (W x D x H) – 304*243mm
• 24-pin ATX main power connector and 8-pin ATX 12V power connector
• 4-pin CPU fan connector and 4-pin system fan connector
• M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
