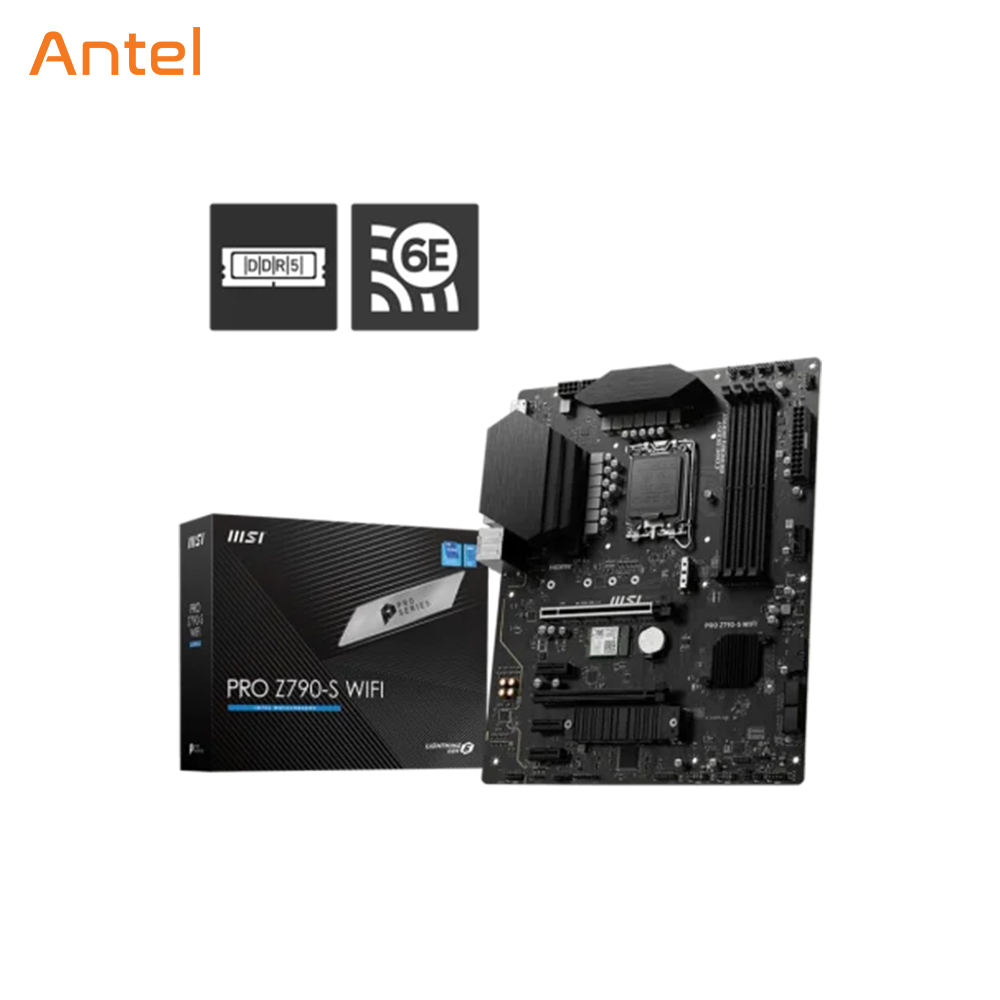

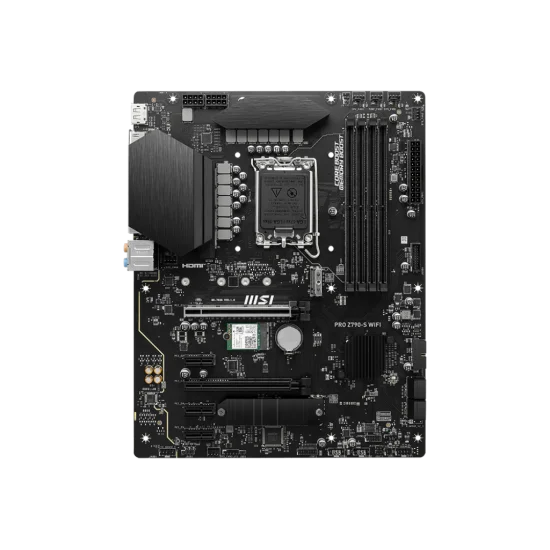

MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard

MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard

Replace or upgrade your business-level system with the MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard. Providing ample connectivity options and the ability to leverage various powerful components, business users gain massive utility suitable for supporting a wide range of applications. Sporting an LGA 1700 socket, you can install a wide range of Intel Core 12th, 13th, and 14th gen processors, gaining the advantages of the Z790 socket. Four dual-channel DDR5 slots can support up to four 6600 MHz modules for 192GB of memory, enhancing multitasking and rendering speeds. Create a large digital library for important business assets with four SATA and two M.2 SSD interfaces. Connect various graphics and utility cards with PCIe 5.0 x16, PCIe 3.0 x16, and three PCIe 3.0 x1 slots. You get access to USB 2.0, 3.2 Gen 1, and Gen 2×2 ports between the back panel and internal headers. You can also use Bluetooth 5.3 technology to connect wireless devices such as controllers, headsets, and more. Wi-Fi 6E (802.11ax) and 2.5 GbE LAN give you wireless and wired network connectivity, allowing you to quickly download company assets, access cloud storage, watch media, and more. Utilizing an 11-phase mirrored power arrangement, you experience enhanced digital power design that can handle large loads while optimizing efficiency, giving you enhanced performance ready to take on high-powered components. The six-layer motherboard supports high bandwidth for faster transfer speeds. You get a variety of cooling enhancements designed to keep your components safe even under heavy loads. Extended and heavy-plated VRM heat sinks, M.2 Shield Frozr, chipset heat sink, and 7W/mK thermal padding with additional choke protection all work together to keep the onboard hardware safe. Dedicated headers for CPU coolers, water-block coolers, and system fans assist with installation and ensure your cooling solution fits your adjustments when teamed with various integrated programs. BIOS settings offer comprehensive cooling performance options allowing you to make easy adjustments, manage fan profiles, auto-detect fans, and monitor temperatures with just one click. Whether you are a first-time or seasoned builder, the PRO Z790-S WIFI is designed to promote easy assembly and reduce the guesswork in your system. You get a keep-out zone, and XL PCIe clip which helps with component installation, while double ESD protection and EZ debug LEDs offer support for your software. This motherboard is also Windows 11 Certified, ensuring proper usage with the operating system. MSI’s Lightning Gen 5 PCIe bandwidth supports up to 128 GB/s data transfer speeds and sports a Steel Armor covering that offers a reinforced casing to help support heavy, large graphics cards. You also get enhanced storage speeds, USB-C speeds, and more. An array of protections is built into the PRO Z790-S WIFI including reinforced power connectors, stainless steel I/O panels, solidified grounding structure, OCP protection, and TVS technologies, all working together to prevent electrical damage. Quad DDR5 RAM slots utilize XMP technology to boost the speed of your memory to greater levels, optimizing render and multitasking speeds.

MSI PRO Z790-S WIFI LGA 1700 ATX Motherboard Features

• High-Performance Chipset: Powered by the INTEL Z790 chipset, the MSI PRO Z790-S ensures a robust and high-performance computing experience for Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold, and Celeron® Processors.
• DDR5 Memory Support: Accommodating the latest DDR5 memory technology, the motherboard boasts four DDR5 slots with a maximum memory capacity of 192GB, supporting overclocking frequencies up to 6600+ MHz for optimized system responsiveness.

• Intel® Wi-Fi 6E: Featuring Intel® Wi-Fi 6E, the motherboard ensures high-speed wireless connectivity with MU-MIMO TX/RX, supporting 2.4GHz / 5GHz / 6GHz* (160MHz) for speeds up to 2.4Gbps. It supports 802.11 a/ b/ g/ n/ ac/ ax standards for a seamless wireless experience.

• Realtek® 2.5Gbps LAN: Equipped with Realtek® RTL8125BG 2.5Gbps LAN, the motherboard provides ultra-fast and reliable wired network connections, ensuring smooth data transfer and low-latency online experiences.

• Versatile Connectivity: The motherboard offers an array of USB ports, including USB 2.0 and USB 3.2 Gen1 Type A on both the front and rear, along with a USB 3.2 Gen2x2 Type C port for high-speed data transfer. It also features HDMI™ and DisplayPort for multimedia connectivity.
• PCI-E Slots: With two PCI-E x16 slots and three PCI-E x1 slots, the motherboard provides ample expansion options. PCI_E1 supports PCIe 5.0 for up to x16 (From CPU), while other slots offer PCIe 3.0 support for various expansion needs.
• Intuitive Internal I/O Ports: The motherboard is designed with user-friendly internal I/O ports, including multiple power connectors, fan headers, RGB LED connectors, and USB ports, facilitating easy customization and system maintenance.
• Robust Build Quality: With ATX form factor, the MSI PRO Z790-S motherboard is built to fit standard cases, ensuring compatibility while delivering stability and reliability for your computing needs.
