| Motherboard Specification | |
| Chipset | Intel B760 |
| Form Factor | mATX 243.84mmx304.8mm |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Performance Audio Supports S/PDIF output |
| Socket | LGA 1700 |
| Memory Specification | |
| Memory Type | DDR5 |
| Memory Capacity | 192GB |
| Network & Wireless | |
| Wi-Fi | Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax |
| LAN | Realtek® 2.5Gbps LAN |
| Supports | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| Supported Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile |
| Connectors | |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 3.2 Gen1 Type A (Front) 4x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
| HDMI | Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz 1x HDMI |
| Display Port | Support DP 1.4, maximum resolution of 8K 60Hz 1x DisplayPort |
| Ports & Slots | |
| Slots | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot PCI_E1 PCIe 5.0 supports up to x16 (From CPU) PCI_E2 PCIe 3.0 supports up to x4 (From Chipset) PCI_E3 PCIe 4.0 supports up to x1 (From Chipset) |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
| PCI-E | 2x PCI-E x16 slot Supports x16/x4 1x PCI-E x1 slot |
| Warranty Information | |
| Warranty | 3 Year |

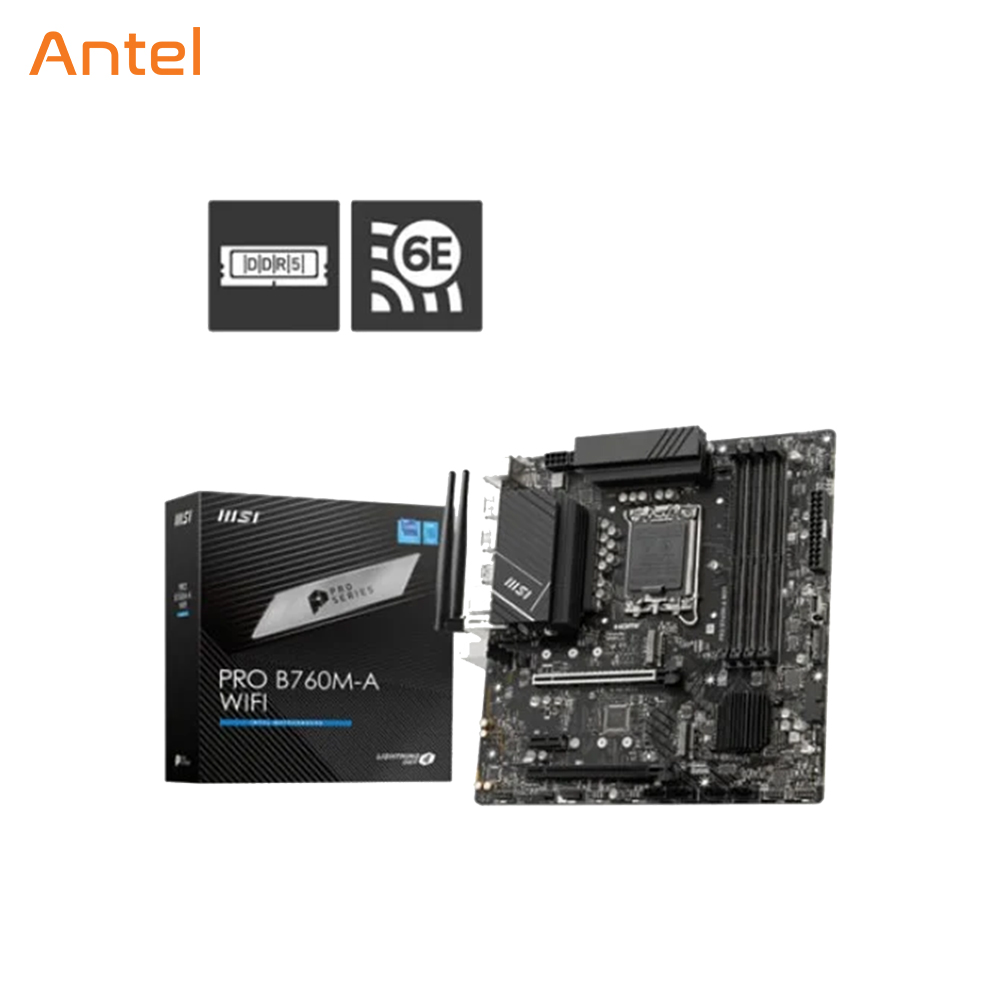

MSI PRO B760M-A WIFI M-ATX Motherboard
The MSI PRO B760M-A WIFI M-ATX Motherboard is a high-quality motherboard that offers a compact form factor without compromising on performance and features. Designed with the Intel B760 chipset and LGA 1700 socket, this motherboard supports 12th/13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors, ensuring compatibility with a wide range of CPUs. With a memory capacity of up to 192GB and DDR5 memory support, it provides ample room for multitasking and resource-intensive applications. The inclusion of Intel Wi-Fi 6E and Realtek 2.5Gbps LAN guarantees fast and reliable network connectivity, while the pre-installed wireless module in the M.2 slot ensures seamless Wi-Fi performance. The MSI PRO B760M-A WIFI M-ATX Motherboard also comes with a comprehensive selection of ports and slots, including USB 2.0 and USB 3.2 Gen2 ports, HDMI and DisplayPort outputs, and PCI-E x16 and x1 slots for expansion options. With its solid build quality, efficient power delivery, and support for Intel Extreme Memory Profile, this motherboard offers a reliable and feature-rich foundation for your system.
MSI PRO B760M-A WIFI Motherboard Features:
Here are some important features of the MSI PRO B760M-A WIFI M-ATX Motherboard-
- Intel B760 chipset
- LGA 1700 socket
- DDR5 memory support with a capacity of 192GB
- Intel Wi-Fi 6E and Realtek 2.5Gbps LAN
- Supports 12th/13th Gen Intel Core Processors
- Dual-channel memory mode
- USB 2.0 and USB 3.2 Gen2 ports
- HDMI and DisplayPort outputs
- PCI-E x16 and x1 slots
- Three-year warranty.
Some Additional features of the MSI PRO B760M-A WIFI M-ATX Motherboard-
- Realtek ALC897 Codec for 7.1-channel USB High-Performance Audio
- S/PDIF output support
- Supports MU-MIMO TX/RX and various Wi-Fi standards
- Addressable V2 RGB LED connectors
- Tuning Controller connector
- Supports TPM 2.0 for enhanced security
- Multiple fan connectors for efficient cooling
- Chassis intrusion and front audio connectors
- Supports high-resolution display output
- PCIe 5.0, PCIe 4.0, and PCIe 3.0 compatibility.
