Specifications
| Main Features | |
| Chipset | AMD® B650 Chipset |
| Expansion Slots | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot 1x PCIe 3.0 x1 slot |
| Form Factor | M-ATX 245mm x 210mm |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Storage | 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only) 3* SATA3.0 ports |
| Supported CPU | Supports LGA1718 slot AMD RYZEN7000 Series TDP: 155W (6+2+1 items) |
| Type | DDR5 |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. |
| Memory Specifications | |
| Supported Memory | 2* DIMM DDR5 memory slots Supports dual-channel memory technology Support 4800MHZ/5200MHZ/OC Memeroy Frequency |
| Connectivity | |
| Audio | Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 1x PS/2 interface 1x M.2 slots (Key-M) 4x SATA 6Gb/s ports 1x 4-Pin SPEAKER 1x Front Audio 1x COM_A Port 1x 9-Pin DEBUG_CON 1x CLR CMOS |
| LAN Ports | Realtek® RTL8111HNIC Chip |
| USB | Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins |
| Warranty Information | |
| Manufacturing Warranty | 3 Years |
Description

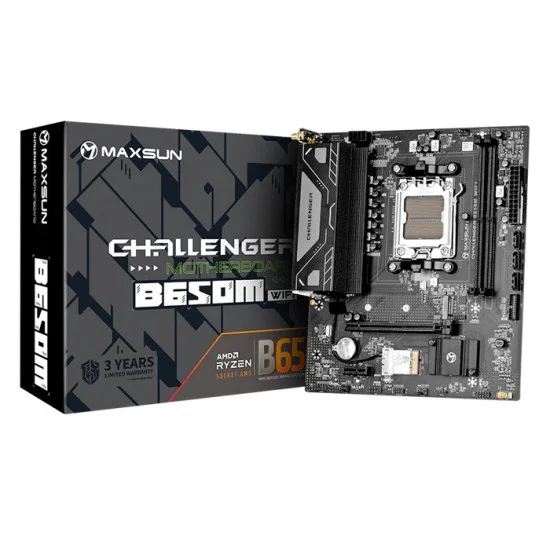

Maxsun Challenger B650M WIFI Micro ATX Motherboard
The Maxsun Challenger B650M WIFI Micro ATX Motherboard stands as a robust foundation for high-performance computing, boasting compatibility with the cutting-edge AMD® B650 Chipset and the formidable AMD RYZEN7000 Series processors. This compact powerhouse supports CPUs with a TDP of up to 155W, including the latest LGA1718 slot Ryzen processors.
Equipped with two DIMM DDR5 memory slots, this motherboard facilitates dual-channel memory technology, enabling blistering data throughput. It accommodates memory frequencies ranging from 4800MHz to an overclocked 5200MHz, ensuring smooth multitasking and seamless gaming experiences. The onboard graphics capabilities are versatile, featuring a VGA port supporting resolutions up to 2048×1536 at 50Hz, 2048×1280 at 60Hz, and 1920×1200 at 60Hz. Additionally, an HDMI™ port is included, capable of delivering stunning 4K visuals at 30Hz, although graphical performance may vary based on the CPU utilized.
Expansion options abound with a PCIe 4.0 x16 slot, a PCIe 3.0 x4 slot, and a PCIe 3.0 x1 slot, providing ample room for additional peripherals and upgrades. Storage options are equally impressive, with an M.2 slot supporting PCIe 4.0 x4 mode for blazing-fast SSD performance, along with four SATA 6Gb/s ports for traditional storage solutions. Connectivity features include a robust array of USB ports, LAN support via the Realtek® RTL8111H NIC Chip, and high-definition audio powered by the Realtek® ALC897 Codec, delivering immersive 5.1-channel audio experiences.
Internally, the motherboard offers comprehensive I/O options, including power connectors, fan headers, PS/2 interface, front audio, COM port, and debug connections, ensuring compatibility with a wide range of peripherals and accessories. With support for Windows® 11 64-bit and Windows® 10 64-bit operating systems, this motherboard is primed for the latest software environments. Its M-ATX form factor, measuring 245mm x 210mm, strikes a balance between compactness and expandability, making it an ideal choice for a wide range of builds where space is at a premium. Whether for gaming, content creation, or everyday computing tasks, the Maxsun Challenger B650M WIFI Micro ATX Motherboard stands ready to deliver exceptional performance and reliability.
