Technical Specification
| CHIPSET | INTEL B760 |
| CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| MEMORY | 4x DDR4, Maximum Memory Capacity 128GB Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz Supports Intel® XMP 2.0 OC Supports Dual-Controller Dual-Channel mode |
| ONBOARD GRAPHICS | 1x Display Port 1.4 1x HDMI™ port *HDMI™ port supports up to 4K@30Hz *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. |
| EXPANSION SLOT | 1x PCIe 5.0 x16 slot 1x PCIe 3.0 x1 slot |
| STORAGE | M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| USB | *Front USB (Total 5 ports) 1x USB 3.2 Gen2x2 Type C 2x USB 3.2 Gen1 Type A 2x USB 2.0 *Rear USB (Total 8 ports) 2x USB 3.2 Gen1 Type A 6x USB 2.0 |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| WIRELESS / BLUETOOTH | Intel® Wi-Fi 6 AX101 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz* (80MHz) up to 600Mbps Supports 802.11 ax Supports Bluetooth® 5.2 |
| AUDIO | Realtek® ALC897 Codec 5.1-Channel High Definition Audio |
| INTERNAL I/O | 1x 24-pin Power Connector(ATX_PWR) 1x 8+4-pin Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 3 x M.2 slots (Key-M) 4x SATA 6Gb/s ports 2x 5V 3-Pin ARGB 1x 12V 4-Pin RGB 1x Clear CMOS 1x 4-Pin SPEAKER 1x Front Audio 1x M.2 slots (Key-E) 1x COM_A Port 1x TPM pin header(Support TPM 2. |
| LED FEATURE | 4x Distributed Debug LED |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | M-ATX 245mm x 245mm |
| Warranty | 3 Years |
Description

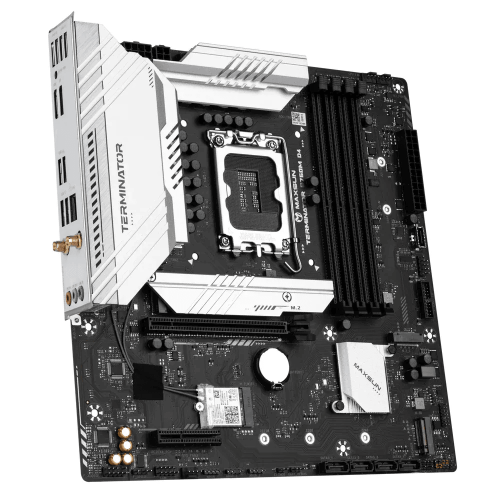

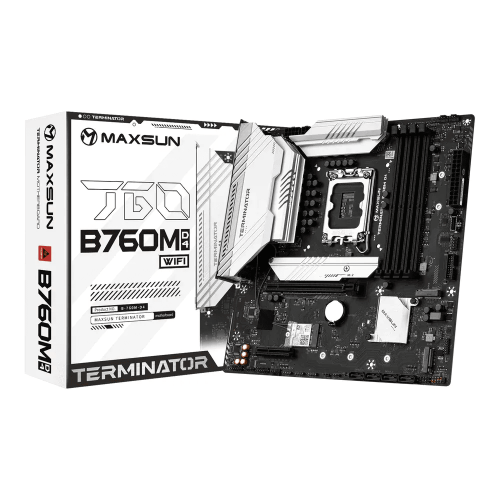

Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard
Introducing the Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard, designed to take your computing experience to the next level. Compatible with 12th and 13th generation LGA1700 interface CPUs, this powerhouse motherboard boasts a robust 10 phases core 50A Dr.Mos power supply, ensuring efficient and reliable performance. With a sturdy 6-layer 2oz PCB and Alloy Radiator Armor, this motherboard is built to handle the most demanding tasks with ease. Enjoy lightning-fast data transfer and storage capabilities with 3*M.2 slots and a 20Gbps USB Type-C port. Furthermore, the inclusion of a 2.5G Network card guarantees seamless connectivity for all your networking needs. For peace of mind, this exceptional motherboard comes with a generous 12 months warranty, providing you with long-term confidence in your investment.
Unleash the full potential of your system with the Maxsun MS-Terminator B760M D4 WIFI DDR4 LGA1700 Motherboard. Whether you’re a gaming enthusiast, content creator, or professional user, this motherboard delivers exceptional performance and reliability. With its advanced features, including 3*M.2 slots, a 2.5G Network card, and a 20Gbps USB Type-C port, this motherboard provides unparalleled connectivity and data transfer speeds. The 10 phases core 50A Dr.Mos power supply ensures stable and efficient power delivery, while the 6-layer 2oz PCB and Alloy Radiator Armor contribute to its durability and heat dissipation capabilities. Additionally, the included 12 months warranty offers peace of mind, making it a compelling choice for anyone seeking a high-performance motherboard that stands the test of time.
