| Processor | |
| Supported CPU | Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors LGA 1700 |
| Mainboard | |
| Chipset | INTEL B760 |
| Memory | |
| Memory | 2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode |
| Graphics | |
| Graphics | 1x VGA *Support VGA, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz 1x HDMI™port *HDMI™ port supports up to 4K@30Hz |
| Networking & Connectivity | |
| LAN | Realtek® RTL8111H 1G LAN |
| Ports | |
| Slots | 1x PCIe 4.0 x16 slot 1x PCIe 3.0 x4 slot |
| Internal I/O Ports | 1x 24-pin Power Connector(ATX_PWR) 1x 8-pin Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2 x M.2 slots (Key-M) 3x SATA 6Gb/s ports 1x 2-Pin CLR_CMOS 1x 4-Pin BUZZER 1x Front Audio 1x COM_A Port 1x 2-Pin F_PANEL 1x TPM pin header(Support TPM 2.0) 1x 3-Pin SPDIF 1x 12V 4-Pin RGB |
| USB | *Front USB (Total 6 ports) 2x USB 3.2 Gen1 Type A 4x USB 2.0 *Rear USB (Total 6 ports) 4x USB 3.2 Gen1 Type A 2x USB 2.0 |
| Physical Specification | |
| Form Factor | M-ATX 245mm x 190mm |
| Warranty Information | |
| Warranty | 3 Years |

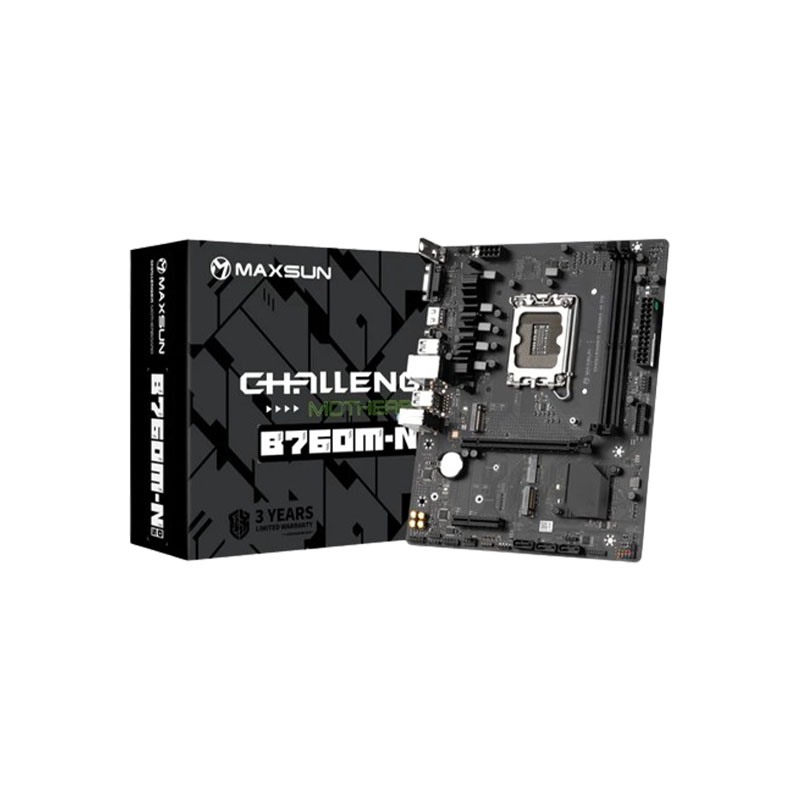

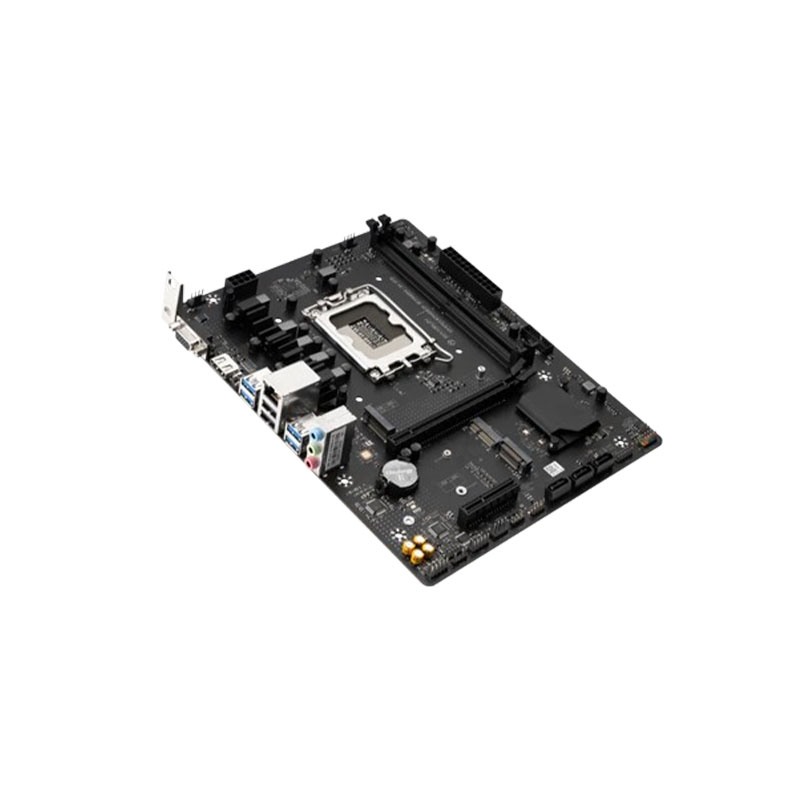

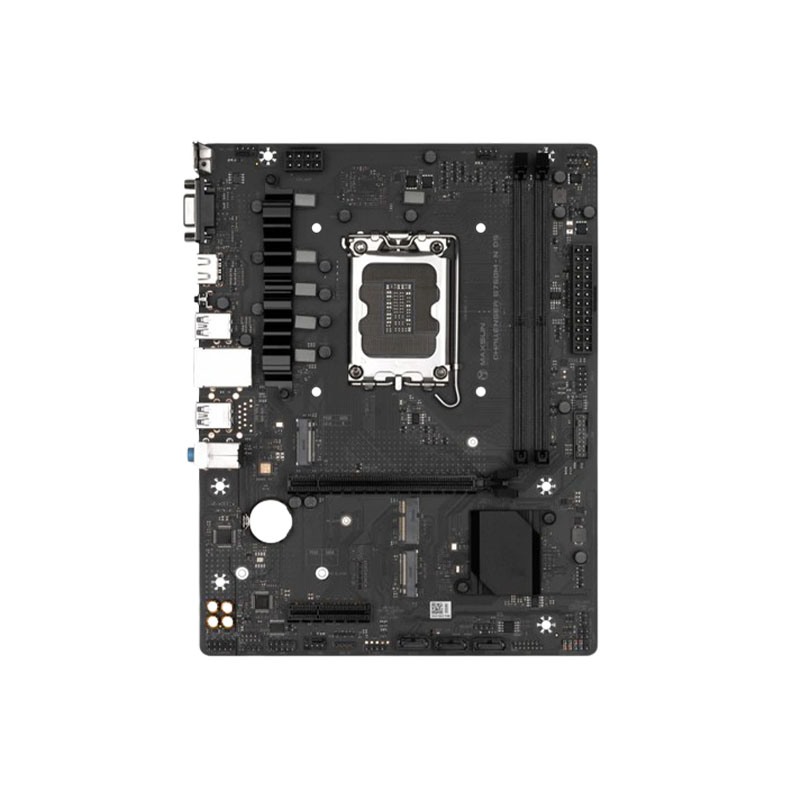

MAXSUN Challenger B760M-N D5 12th/13th Gen Motherboard
11,800.00৳
Key Features
- 4+1+1 phase stable power supply
- Core 50A Dr. Mos
- High-speed Dual M.2
- DDR5 memory, XMP 5600MHz/OC+
