Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | 4mm thick Tempered Glass side-panel | |
| Motherboard Support | Mini-ITX / Mico-ATX / ATX / E-ATX | |
| External Features | ||
| Color(s) | Black | |
| Weight | 6.5 Kg | |
| Dimensions | 438×210×477mm | |
| Front Ports | USB3.0×1、USB2.0×2、Audio×1、Mic×1 | |
| Expansion Slots | 7 Slots | |
| Radiator Support | Additional Radiator support Front: 120/140/240/280/360mm; Top: 120/240mm; Rear: 120mm |
|
| Fan Support | Additional Fan support Front: 3×120 / 3×140mm; Top: 2×120 / 2×140mm |
|
| Pre- Installed Fans | Rear: 1×120mm | |
| Drive Bays | 2 x 3.5 inch HDD 4 x 2.5 Inch SSD |
|
| I/O Port | USB3.0 ×1、 USB2.0 ×2、 Audio×1、 Mic×1 Power button x 1 Restart button x 1 |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 170mm | |
| Maximum Graphics Card Length | 370mm | |
| Warranty | ||
| Warranty | No warrenty | |
Description

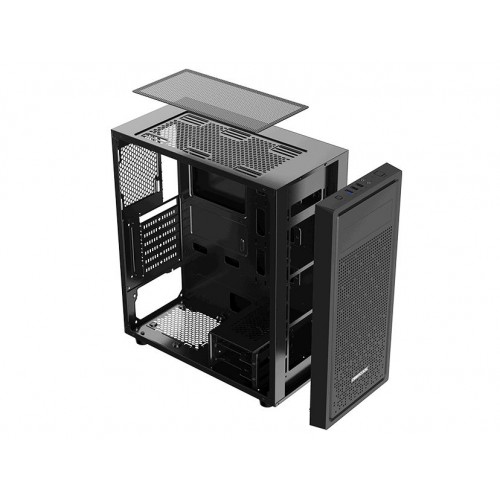

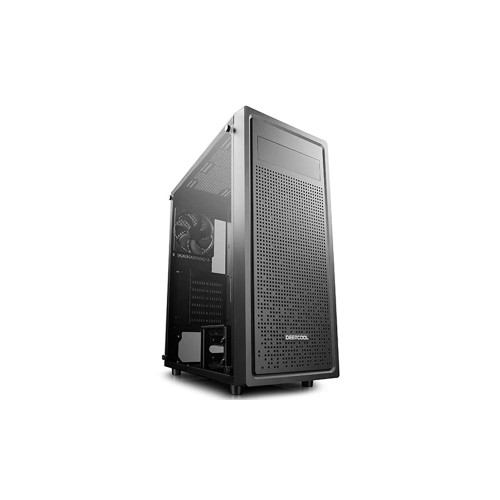

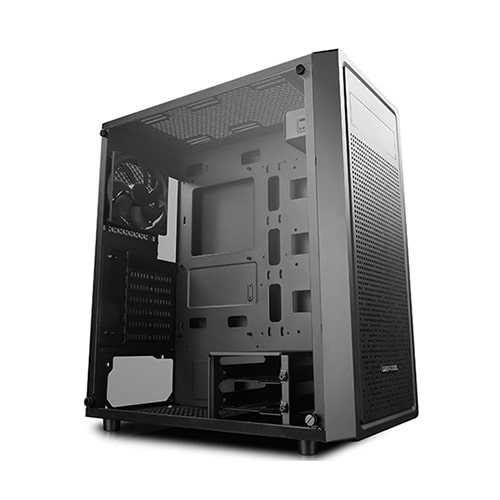

Deepcool E-Shield Mid Tower ATX Case
Deepcool E-Shield Mid Tower Case is a budget friendly mid tower case that is ideal for lower to mid range PC building. This casing supports up to from ATX to E-ATX motherboards depending on the build. It can also support the installation of 120mm, 140mm, 240mm, 280mm and 360mm radiator for liquid cooling system at the front. But you can only install a 360mm radiator without CD-ROM. Apart from that it can house the installation of 120mm,140mm and 240mm radiator liquid cooling system on top side. At rearside, it supports installation of 120mm radiator liquid cooling system.The Square-hole Array style front panel is used to keep sufficient intake airflow from the front, and also to keep the exterior semi-transparent for RGB devices. Cooling performance is crucial and for that the E-SHIELD does a great job.The square-hole array style front panel with exquisite and optimized structural design makes E-SHIELD a leading choice for PC enthusiasts who want a great performance. The maximum length of a Graphics Card supported is 370mm. this casing comes with a magnetic dust proof net on top. it is very easy to clean. the budget friendly designed internal structure comes with a 4mm thick tempered glass side-panel. the I/O ports are 1 × USB 3.0 and 2 x USB 2.0 Ports. This casing has a 25mm clearance for easy cable management.The dimension of this casing is 438×210×477mm mm. The net weight is around 7.5 Kg. Deepcool E-Shield Mid Tower Case offers No warranty.
