| Storage | |
| Capacity | 512 GB |
| Sequential R/W | Sequential Read: Up to 5000MB/s Sequential Write: Up to 2800MB/s |
| Shock resistance | 1,500 G/0.5 ms (half sine wave) |
| Technical Info | |
| Vibration Resistance | 7-800 Hz, 3.08 G |
| MTBF | 1,500,000 hours |
| Transmision Speed | PCI Express 4.0 |
| IOPs (4K Random Read/Write) | 4K Random Read: Up to 395000 IOPS 4K Random Write: Up to 620000 IOPS |
| Battery And Power | |
| Power Consumption | 3250 mW (max), 1450 mW (idle) |
| Physical Specification | |
| Humidity | 5%–95% (non-condensing) |
| Form Factor | M.2 |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Dimension | Product Dimensions: 80.00 mm × 22.00 mm × 2.25 mm (3.15″ × 0.87″ × 0.09″) Packaging Dimensions: 140.5 mm × 105.5 mm × 15.50 mm (5.53″ × 4.15″ × 0.61″) |
| Storage Temperature | –40 °C to +85 °C (–40 °F to +185 °F) |
| Weight | Max. 8 g (0.02 lb) |
| Others | |
| Other Features | Memory Component: 3D NAND S.M.A.R.T: Support TRIM: Support Garbage Collection: Support TBW rating: 1000 Broad: 80mm Depth: 22mm Height: 2.25mm |
| Warranty Information | |
| Warranty | 3 Years Warranty |

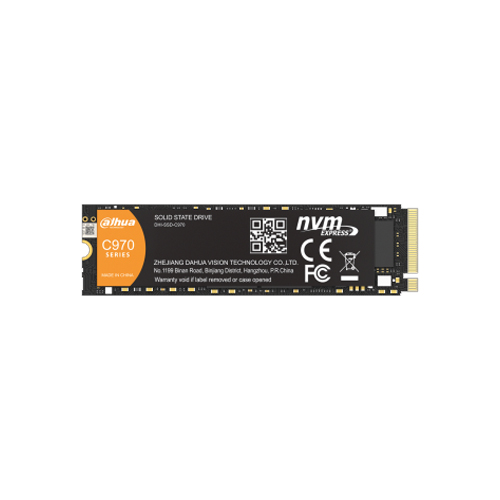

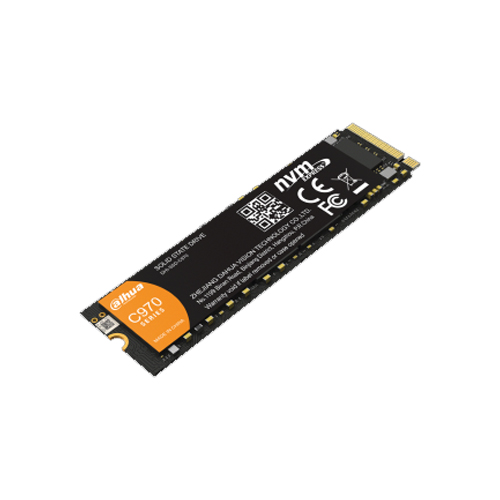

DAHUA DHI-SSD-C970N512G M.2 512GB SSD
The DAHUA DHI-SSD-C970N512G is a high-performance solid-state drive (SSD) that has a storage capacity of 512GB. It uses the M.2 form factor and a PCI Express 4.0 interface. The SSD utilizes 3D NAND memory technology and supports NVMe version 1.4. With a reading speed of 5000MB/s and a write speed of 2800MB/s, it delivers excellent performance. Additionally, its Random Read (4KB) and Random Write (4KB) speeds are impressive at 395000 IOPS and 620000 IOPS respectively. The Mean Time Between Failure (MTBF) for this SSD is estimated to be around 1500000hrs, with a TBW rating of 1000. This SSD also supports SMART and TRIM features, ensuring its reliability and longevity. The DAHUA DHI-SSD-C970N512G does not have hardware encryption but is compatible with various PCs. It has a broad width of 80mm, depth of 22mm, height of 2.25mm, and weight of 8g, which makes it lightweight and easy to install. The SSD has a low standby power consumption of 1.45W and a maximum power consumption of 3.85W. Operating temperatures range from 0 – 70°C, while storage temperatures range from -40 – 85°C. Moreover, the SSD can withstand operating vibrations of up to 3.08g and blows of up to 1500g. Operating Relative Humidity ranges between 5 – 95%, and the maximum temperature is set at 70°C. Additionally, the DAHUA DHI-SSD-C970N512G meets sustainability compliance standards and comes with a three-year warranty.
