Specification
| Case Type | ||
| Type | Mid Tower | |
| Tempered Glass Panel | Yes | |
| Motherboard Support | E-ATX, ATX, Micro-ATX, ITX | |
| External Features | ||
| Color(s) | White | |
| Material | Steel, Plastic | |
| Weight | Net Weight: 8.1 kgs Gross Weight: 9.1 kgs |
|
| Dimensions | 481 x 220 x 490mm (DWH) | |
| Front Ports | Power, LED control button, USB 3.0 x 2, TYPE-C 3.2 Gen 2 x 1, MIC x 1, HD-AUDIO x 1 | |
| Expansion Slots | 7 | |
| Radiator Support | Front: 120 / 140 / 240 / 280 / 360mm Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm |
|
| Fan Support | Front: 120mm x 3 / 140mm x 3 / 185mm x 2 Top: 120mm x 3 / 140mm x 2 Power Supply Shroud: 120mm x 2 Rear: 120mm x 1 |
|
| Pre- Installed Fans | 120mm ARGB fans in front x 3 | |
| Drive Bays | 3.5″ / 2.5″: 2 / 2 2.5″: 2 |
|
| Additional Feature | ||
| Side Panel | 4mm Tempered Glass | |
| Clearance Space | ||
| Maximum CPU Cooler Height | ≤ 170mm | |
| Maximum Graphics Card Length | ≤ 375mm | |
| Maximum PSU Length | ≤ 205mm(with HDD) ≤ 410mm(without HDD) |
|
| Warranty | ||
| Warranty | No Warranty | |
Description

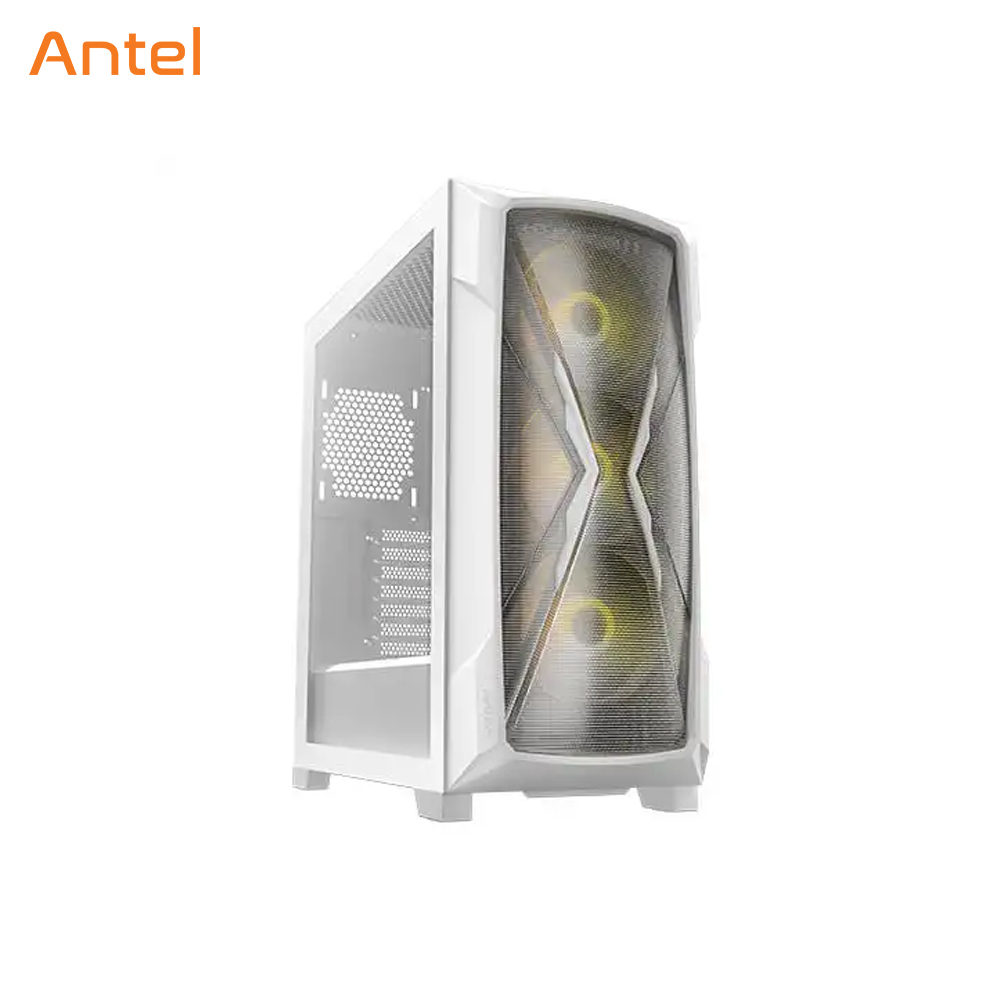

Antec DP505 White Mid-Tower E-ATX Gaming Case
The Antec DP505 White Mid-Tower E-ATX Gaming Case supports E-ATX, ATX, Micro-ATX, and ITX motherboards. It features an extensive interior and powerful compatibility. 2 x 360mm can be installed in the front & on the top simultaneously. This desktop PC gaming casing comes with a massive X-shaped mesh front panel and ventilation on the top, at the bottom, and in the PSU chamber, which will accelerate the airflow circulation and enhance the cooling performance. The Antec DP505 White comes with a Massive Mesh Front Panel with X-Shaped Design. There is a magnetic dust filter on the top and a pull-out dust filter at the bottom. It offers well-designed cable routing making wiring easy and simple, with a spacious 23mm of space for cables. It can fit up to 4 drives easily.
Three addressable RGB fans Included
This Mid-Tower E-ATX Gaming Case comes with 3 addressable RGB fans Included. These fans are pre-installed at the front for efficient airflow and customizable RGB lighting.
Built-in ARGB & PWM Control Hub
The Antec DP505 White comes with a built-in ARGB & PWM Control Hub. The control hub supports up to 6 fans and 6 LED devices. Connect it to your motherboard for 16.8 million possible colors.
Supports up to 9 fans
The Gaming Case offers enhanced cooling performance. In this case, 3 x 120mm ARGB fans and a 360 mm radiator can be installed simultaneously in the front interior for better cooling performance.
The Antec DP505 White comes with no warranty.
